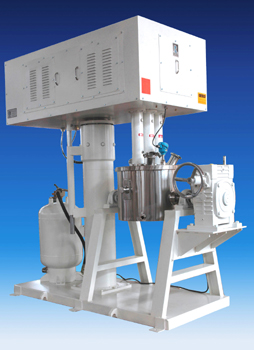

VersaMix - Tilting Mix Vessel
The Ross VersaMix Model VMC is offered in many sizes ranging from 1 gallon to 750 gallons working capacity.
The air/oil lift system of this new model raise and lower the agitators from the mixing vessel. The vessel is attached to a frame that includes a manual tilting mechanism to allow 120 degree tilting for full discharge and thorough cleaning, after completion of the mixing cycle. The new design is also built for vacuum operation and includes a jacketed mix vessel for heating or cooling Special charging openings and a light are built into the vacuum cover.
The VersaMix combines up to three separate agitation systems, a Three Wing Anchor , a High Speed Disperser and a High Shear Rotor-Stator Mixer. The mixer is ideal for manufacturing viscous dispersions and emulsions with viscosities up to 1,000,000 centipoise. The VersaMix is available for no-charge testing or in plant trial rentals prior to purchase.
Additional details are available by contacting Ken Langhorn – Product Manager by calling 1-800-243-ROSS or via email: [email protected]
