New Vacuum Dryer Offered
We have recently introduced a new line of Cylindrical Dryers for the chemical process industries.

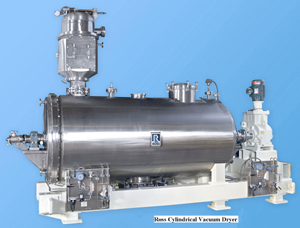

The unit shown is a 150 cu.ft. model. It is being used to dry specialty chemicals. Internal agitation consists of an improved paddle design, set at opposing angles, to insure that the materials being dried are continuously exposed to the jacketed surface area of the trough and endplates.
The cylindrical dryer line can include the following special features:
A variety of materials of construction such as hastelloy and stainless steel
Full vacuum and internal pressure operation
Dimpled and baffled jackets on trough sides and endplates to 200 psig
Polished surfaces up to a mirror finish
Special discharge valves – flush plug, spherical, slide gate, etc.
Designs are available from 1 through over 500 cu.ft. Other options include choppers for size reduction, spray nozzles, variable speed drives, control systems, etc. For additional information contact, Warren Ang, Blender - Product Manager at 1-800-243-ROSS (7677)
